Tall Timber

Volume/Expression Knob

Use as an expression controller with a single TRS cable or as a passive volume control with 2 TS Cables.
Small form-factor.
Powder-coated aluminum enclosure with carved walnut top.
100kOhm analog taper in volume mode. Linearized in expression mode. Custom resistance and tapers available by request.
Click for help selecting the right expression resistance

Specifications

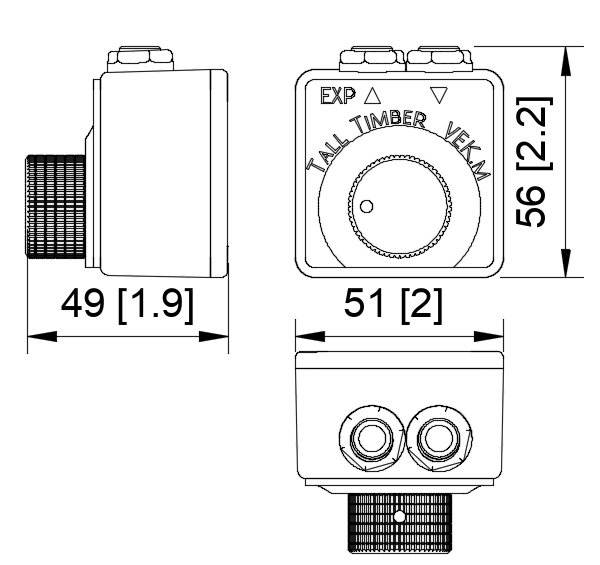

Dimensions

Product (LxWxH) 56 x 51 x 49 mm (2.2 x 2.0 x 1.9 in)
Package (LxWxH) 95 x 58 x 58 mm (3.7 x 2.3 x 2.3 in)
Materials

Enclosure: Powder-coated machined cast aluminum
Knob: Solid aluminum with set screw
Top: Carved solid Walnut
100k QL Model Details

Fader Resistance: 100kOhms +/-20%
Fader Taper in Volume Mode: Audio
Fader Taper in Expression Mode: Linearized (22k minimum input resistance)
Available Enclosure Colors: Frankensparkle (Green), Matte White, UV Glow White
Knob Color: Silver with black pointer
What's Included

Tall Timber Fader
Optional Rubber Feet
Protective Muslin Bag
Product Box w/ sticker and pick pack
