Tall Timber

PWNY Joystick

Dual Expression Controller

PWNY Joystick Features:

  • 2 independent expression control ports

  • Available with both self-centering and free-floating joysticks.

  • Powder-coated aluminum enclosure with carved walnut top.

Specifications

  • Dimensions

    Product (LxWxH) 120 x 77 x 75 mm (4.7 x 3.0 x 2.9in)

    Package (LxWxH) 145 x 85 x 85 mm (5.7 x 3.3 x 3.3 in)

  • Materials

    Enclosure: Powder-coated machined cast aluminum

    Fader Cap: Plastic w/ Steel Set-Screw

    Top: Carved Solid Walnut

  • Free-Floating Version

    Joystick Resistance: 10kOhms +/-20%

    Linear Taper

    Enclosure Color: Black River

  • Self-Centering Version

    Joystick Resistance: 5kOhm +/-20%

    Linear Taper

    Enclosure Color: Black River

  • What's Included

    Tall Timber PWNY Joystick

    Optional Rubber Feet

    Protective Muslin Bag

    Product Box w/ sticker and pick pack

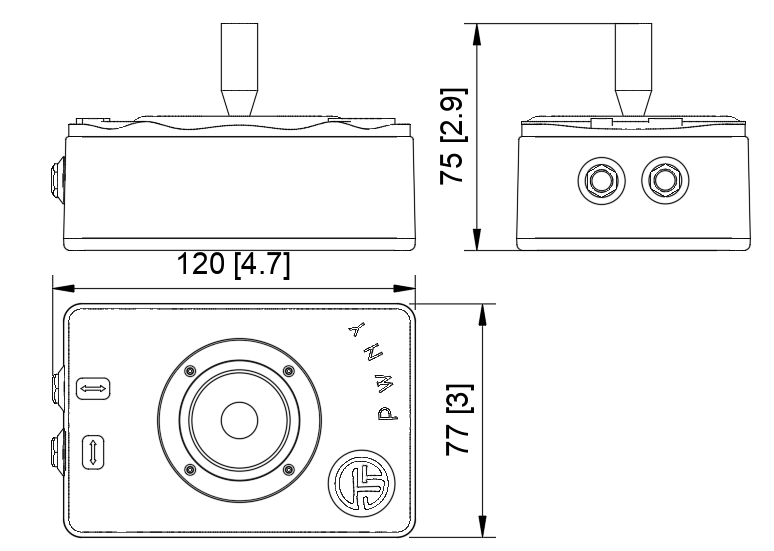

Dimension in mm[inch]

Dimension in mm[inch]

TRS Connector Pinout

TRS Connector Pinout

Free-Floating Version
Self-Centering Version
