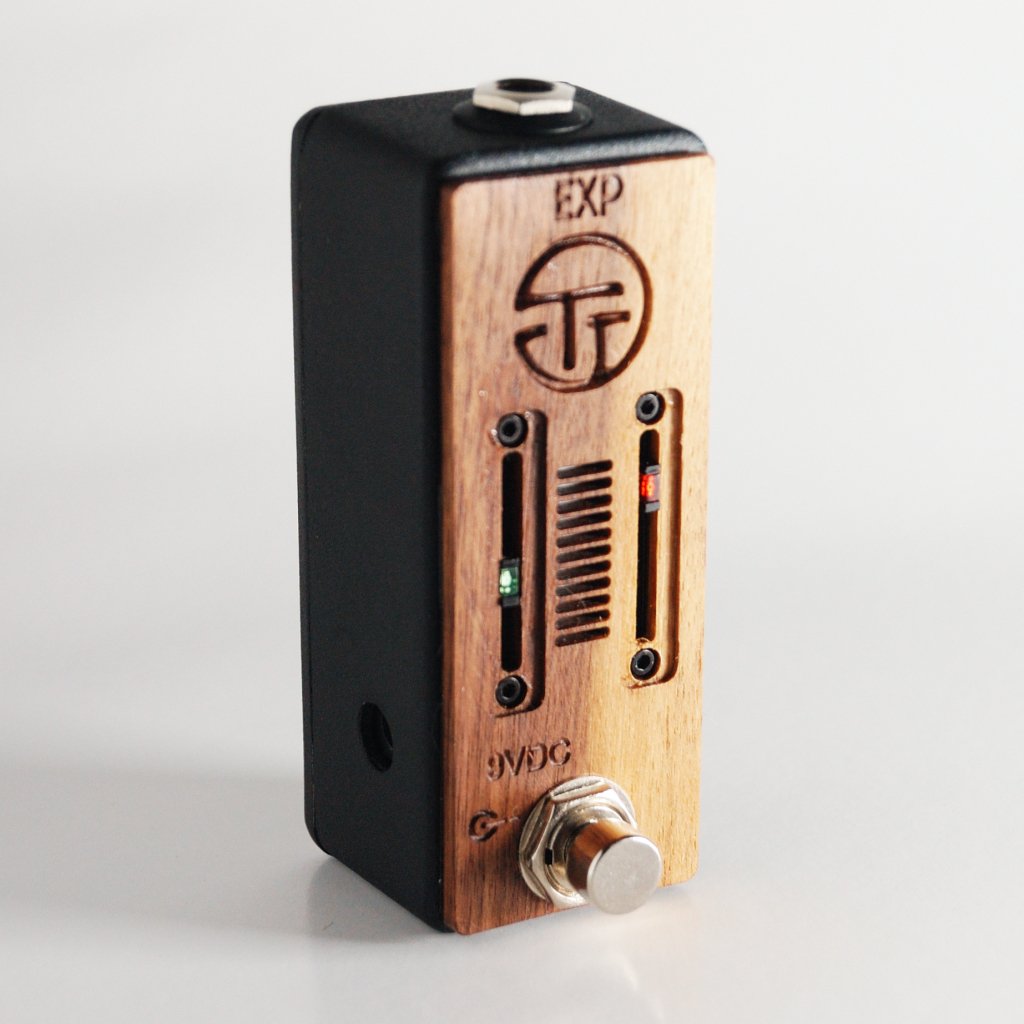

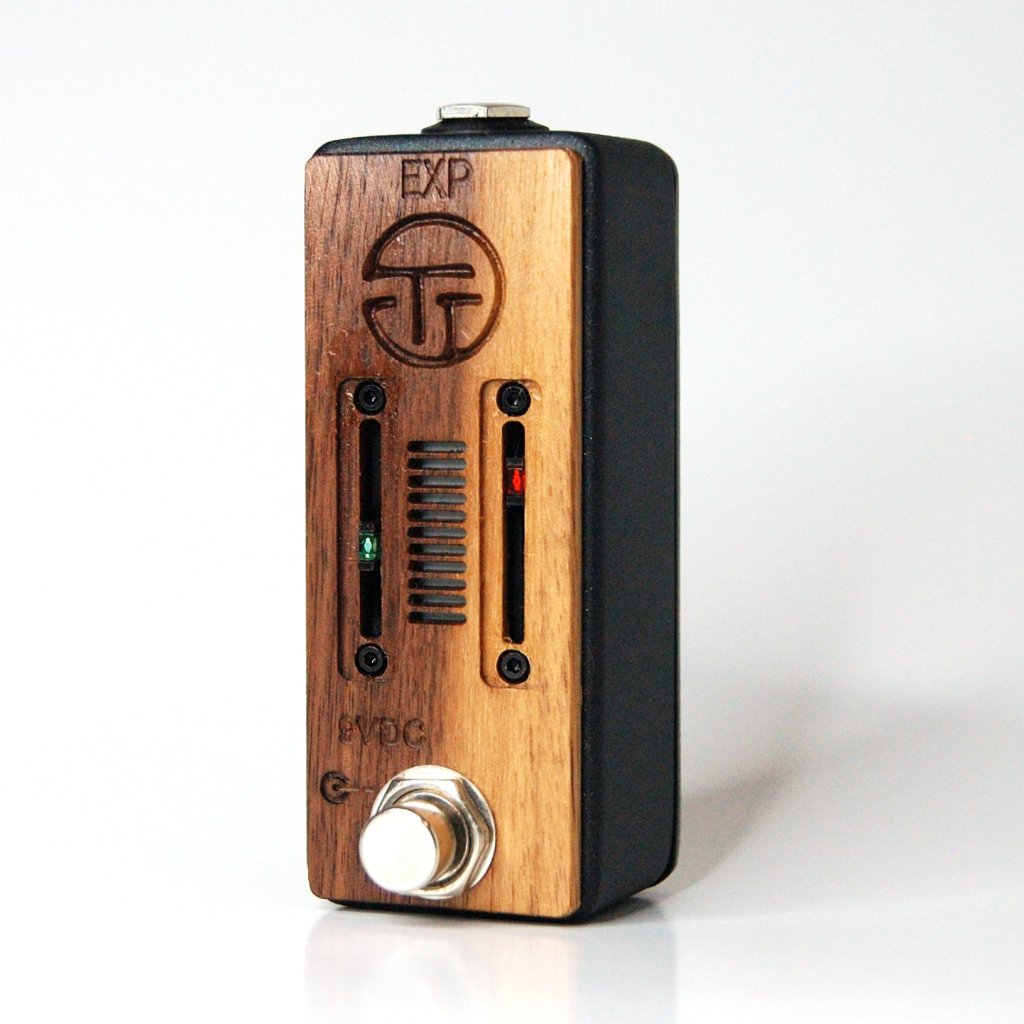

Tall Timber

Expression Toggle

Adjust slider positions to set two expression presets.
Click footswitch to toggle between presets.
Selected slider is illuminated.
Scale is illuminated.
Powder-coated aluminum enclosure with carved walnut top.
Boss-standard 9V power supply (not included) required for illumination.
Use as an expression controller with a standard TRS cable, or as a passive volume control, using an insert cable.

Specifications

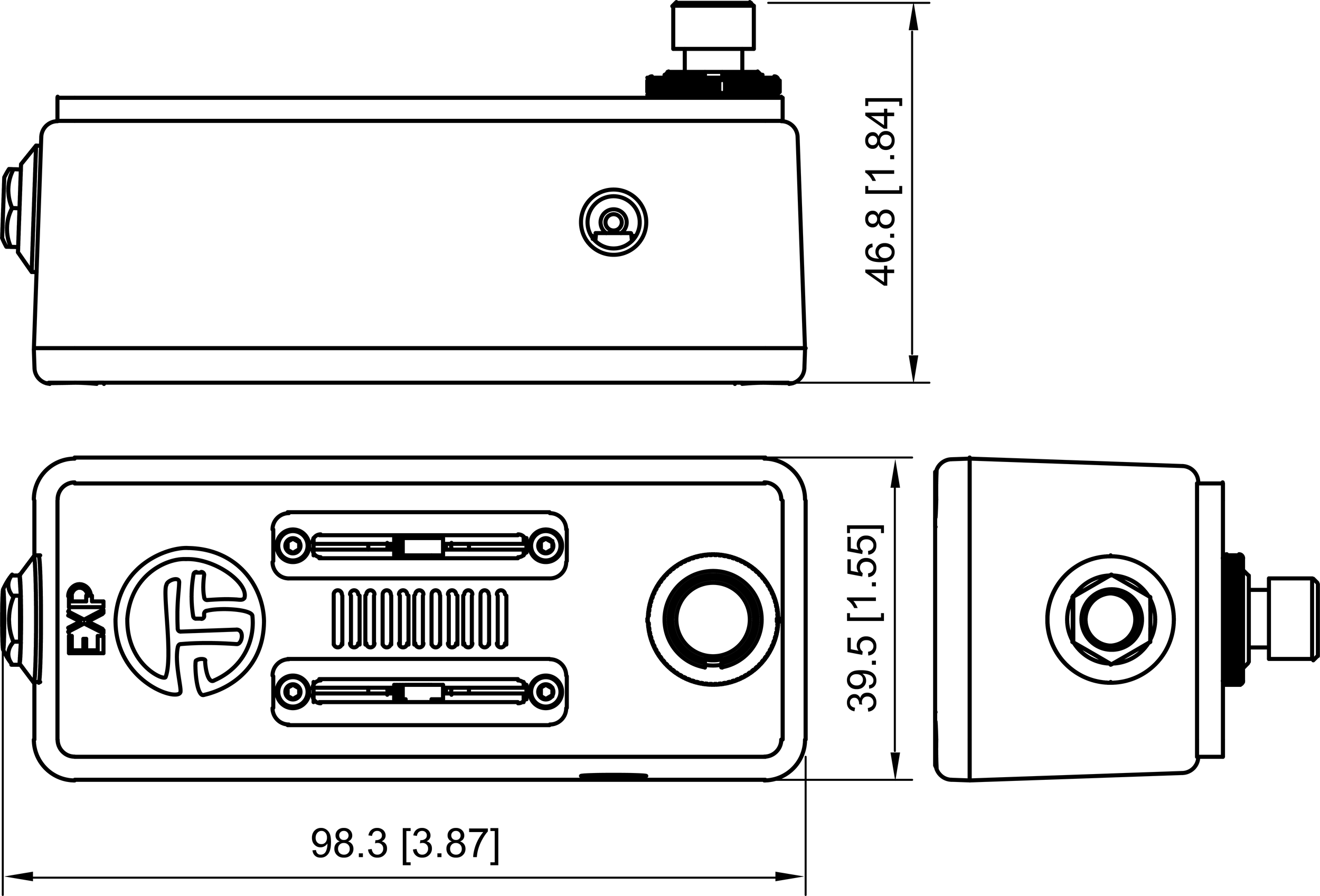

Dimensions

Product (LxWxH) 98 x 40 x 47 mm (3.9 x 1.6 x 1.8 in)
Package (LxWxH) 135 x 75 x 63 mm (5.3 x 3.0 x 2.5 in)
Materials

Enclosure: Powder-coated machined cast aluminum
Top: Carved Solid Walnut
100k Linear Model Details

Fader Resistance: 100kOhms +/-20%
Fader Taper: Linear
Enclosure Color: Textured Black Powder
What's Included

Tall Timber Expression Toggle
Optional Rubber Feet
Protective Muslin Bag
Product Box w/ sticker and pick pack
Power Requirements

Power is required for illumination
Power supply is not included
Voltage: 9VDC, center-negative
Current: 20mA max
Connector: DC barrel jack with 5.5mm OD and 2.1mm ID
